A product of Eka · offline AI study companion

Buddie

The study companion that never goes online.

Buddie is a small white box with a screen, a camera and a push-to-talk button. Ask it a question and it answers — with every byte of the thinking happening inside the box.

See inside In active development · V2
Buddie: a white perforated case with a dark 5-inch screen in the lower left
Live: Buddie's real UI (buddie5.html), demo mode · render from CAD

The problem

Online AI comes with the whole internet attached.

Feeds, tabs, recommendations and one more video. Buddie removes the internet from the equation, so a study session stays a study session — and your questions never leave the room.

  • 0%cloud
  • 6GBon-board RAM
  • 5″touchscreen

(02) The fix

Close every tab.
Keep the answer.

Scroll, and watch the internet leave the room. What’s left is one question, one answer, and a box that physically can’t open a feed.

12 distractions open

Source: CAD

Inside

Engineering,
not decoration.

01 / 04

A case with 445 holes

3D-printed and perforated with 445 holes, each Ø2.25 mm, on a staggered 7 × 12 mm grid — so the speaker can breathe and the electronics stay cool. Every hole on this page is drawn from the real CAD file.

02 / 04

Built to be carried

A slim enclosure (152 × 229 mm front) with a rocker switch that physically cuts the power. No standby. No “it was listening the whole time”.

03 / 04

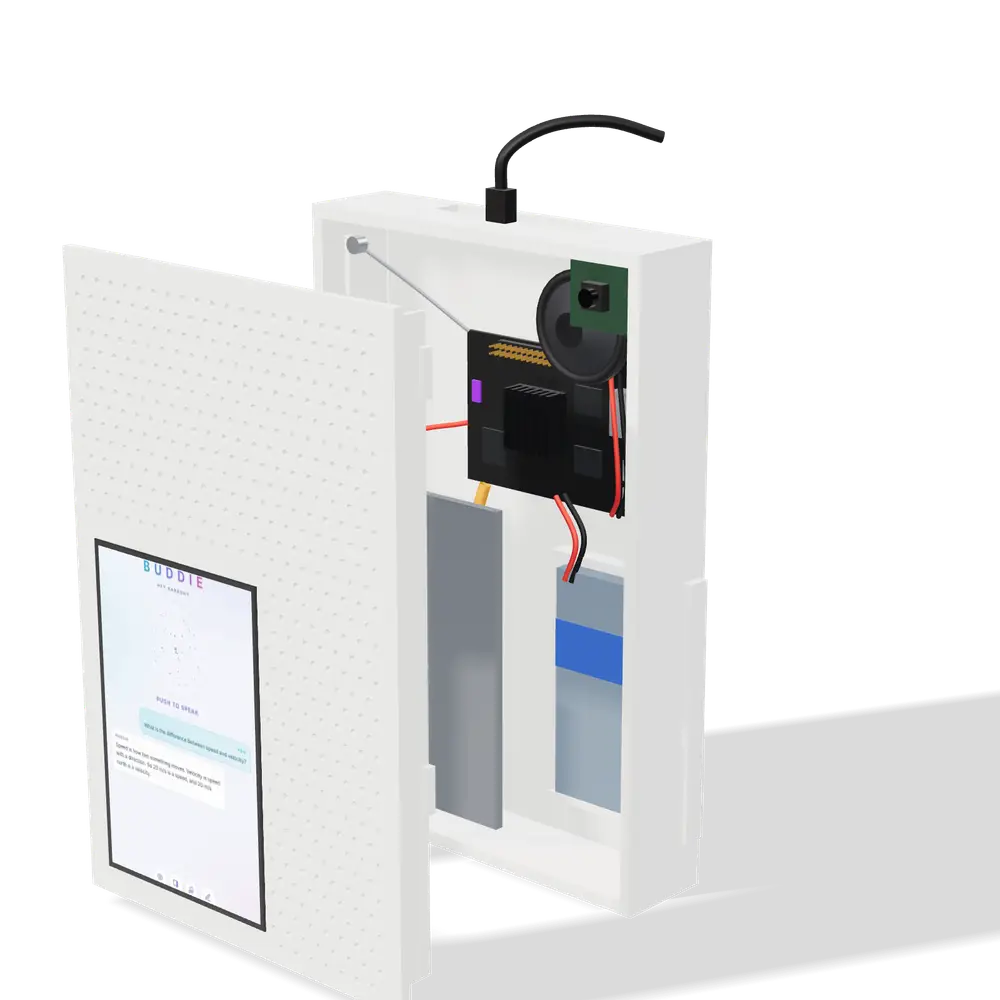

Everything inside the box

The front lifts away from the base. Inside: a Radxa Cubie A7A (Allwinner A733, 6 GB RAM), microphone, speaker, camera and a battery bay. All the thinking happens here.

04 / 04

A 5-inch window into it

The touch panel sits in the opening on the lower left. Push to talk, read the answer, put it down.

Anatomy.

Case
3D-printed, perforated for airflow and sound
Display
5-inch touch panel
Eyes
Camera for reading pages and seeing objects
Voice
Push-to-talk button, microphone and speaker
Brain
Radxa Cubie A7A · Allwinner A733 · 6 GB RAM
Power
Rocker switch with hard cut-off · Li-Po-ready battery bay

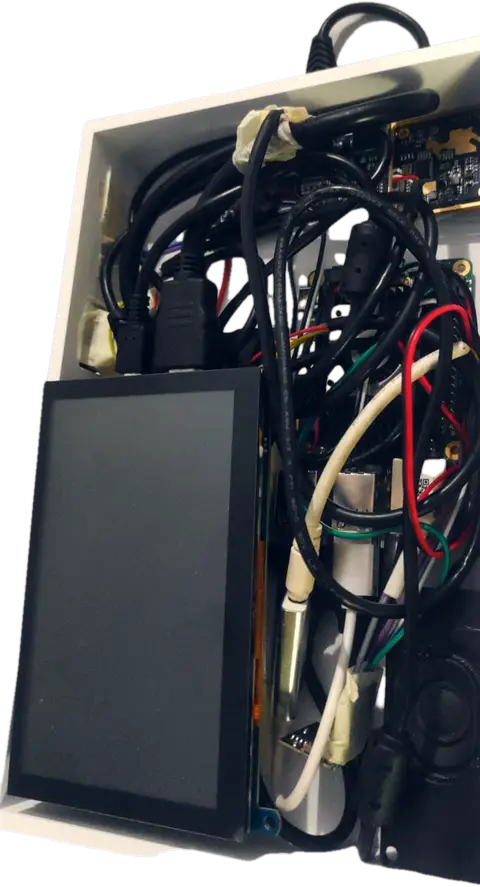

Buddie opened: the Cubie A7A board, wiring and the back of the screen
The real inside. It works; it is not yet tidy.

(04) Spin it

Grab it.
Turn it around.

The real case, from the CAD file, with everything that lives inside it. On its screen: Buddie answering a question, recorded from its real interface.

  • Radxa Cubie A7A · A733 · 6 GB
  • Li-Po in its bay
  • 40 mm speaker
  • Camera + mic
  • Display ribbon
Recorded from Buddie’s real UI · demo mode

What it does

Six modules. Zero tabs.

Decisions.

  1. 01

    Why a single-board computer

    A phone would be easier. It would also come with an app store, a browser and notifications. A dedicated board makes “offline” a physical fact, not a setting.

  2. 02

    Power you can trust

    A hard rocker cut-off and a single-cell Li-Po design keep the electronics simple and safe to carry.

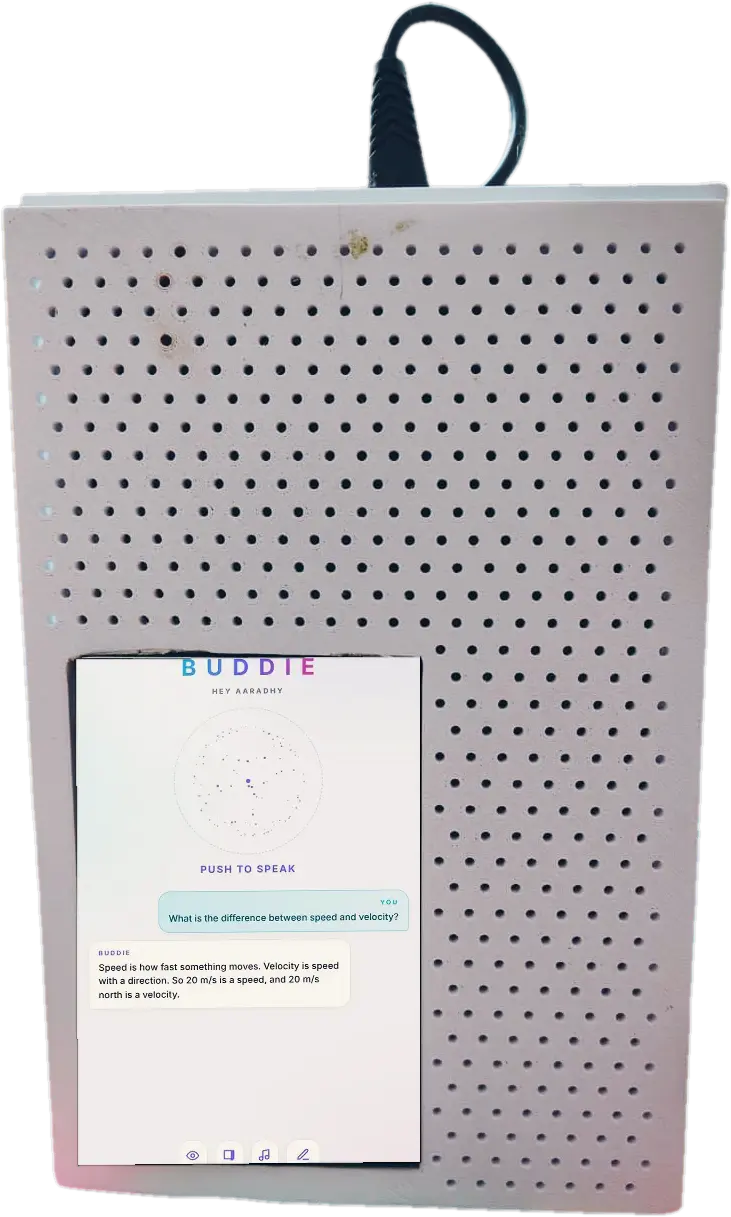

Buddie from the front, its screen showing an answer

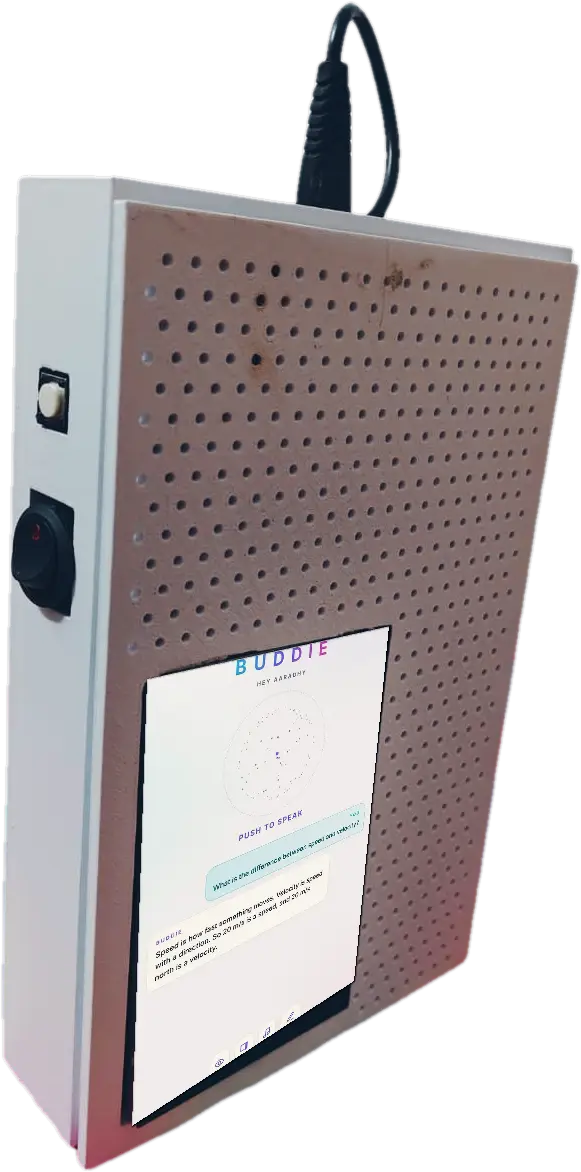

Buddie from the side: the rocker switch and the push-to-talk button

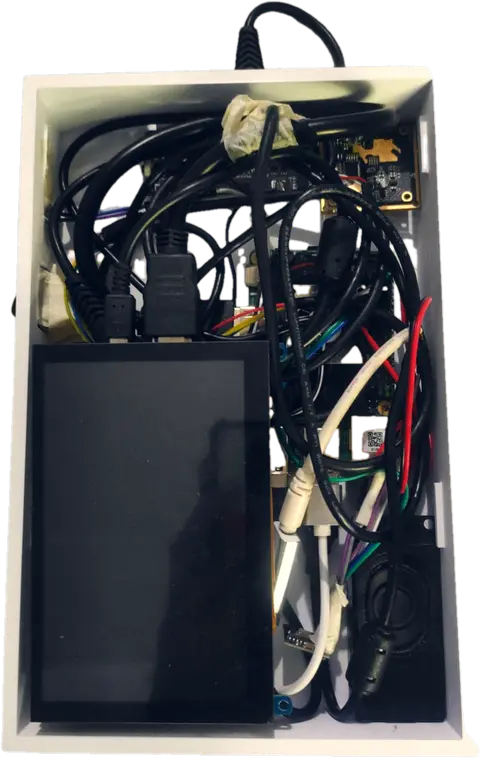

Buddie opened: the board, screen and wiring
Buddie opened, from another angle

fig. — the real prototype, cut out and relit. The screen shows Buddie’s real interface.

Status.

Stage
In active development · V2
Patent
Patent application filed in India · No. 202621081025
Made by
Eka — designed and built by Aaradhy Badjatya
Availability
Not for sale yet. Want to follow the build or try it?
Email about Buddie
